Încărcător frontal telescopic 3060T

Metric Imperial


-	Anvelope standard	365 / 70 R 18 BKT Multimax MP513 ET30 365 / 70 R 18 BKT Multimax MP513 ET30

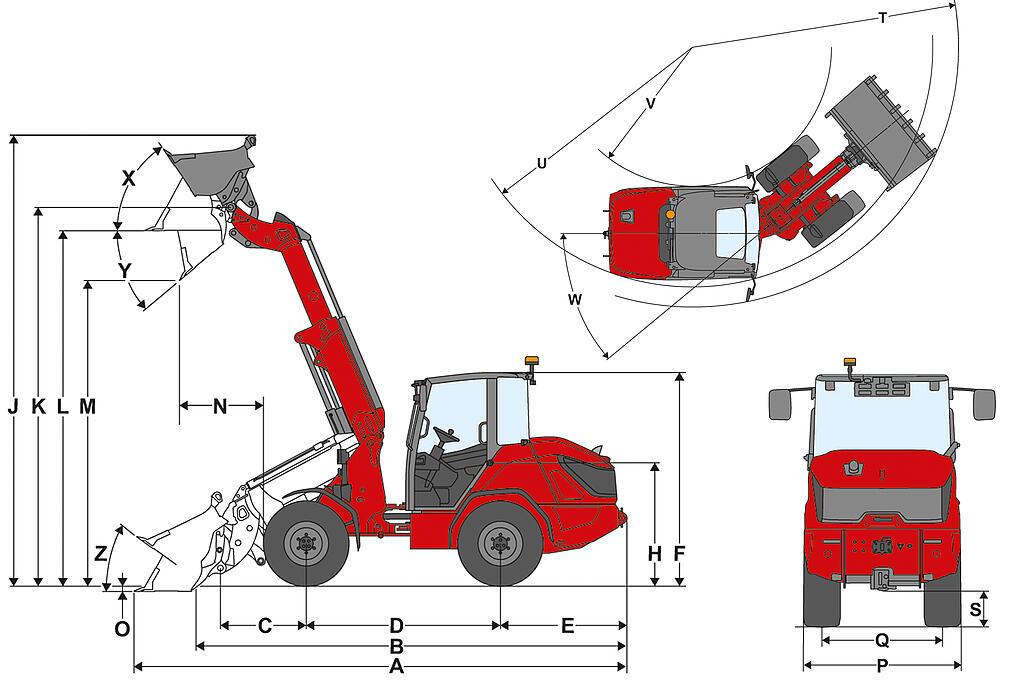

A	Total length	6.030 mm 237,4 in
B	Total length without bucket	5.160 mm 203,1 in
C	Bucket pivot point (to center of axle)	1.210 mm 47,6 in
D	Wheel base	2.325 mm 91,5 in
E	Rear overhang	1.435 mm 56,5 in
F	Height with cab	2.485 mm 97,8 in
H	Seat height	1.460 mm 57,5 in
J	Total working height	5.875 mm 231,3 in
K	Bucket pivot point (max. lift height)	4.985 mm 196,3 in
L	Load-over height telescopic arm extended	4.780 mm 188,2 in
M	Dumping height telescopic arm extended	4.085 mm 160,8 in
N	Reach (at M)	960 mm 37,8 in
O	Digging depth	110 mm 4,3 in
P	Total width	1.720 mm 67,7 in
Q	Track width	1.360 mm 53,5 in
S	Ground clearance	335 mm 13,2 in
T	Maximum radius	4.585 mm 180,5 in
U	Radius on the outer edge	3.935 mm 154,9 in
V	Inner radius	2.125 mm 83,7 in
W	Articulation angle	40 ° 40 °
X	Rollback angle at max. lift height	56 ° 56 °
Y	Dumping angle	40 ° 40 °
Z	Rollback angle on ground	39 ° 39 °

Dimensiuni
