Weidemann Hoftrac/farm loader 1260LP cabin with sweeper in action
Weidemann Hoftrac/farm loader 1260LP cabin with power grab bucket in action
Weidemann Hoftrac/farm loader 1260LP cabin hydraulically activated feed slide plate in action
Weidemann Hoftrac 1260LP with power grab bucket, Studio

1260LP Hoftrac - Powerful Classic

The designation LP stands for Low Position at Weidemann. This already has a long tradition and means that the machine has a lower clear height and a low machine center of gravity. With the Hoftrac 1260LP, you can pass under 2 m / 78.74 in without having to fold down the overhead guard. On the other hand, the loader is characterized by improved stability, which makes it unbeatable in handling heavy loads. Added to this is our Direct Wheel Drive (dwDrive), a powerful and efficient drive concept in which all four wheels are driven directly. This purely hydraulic wheel hub drive provides an increase in efficiency, excellent acceleration and thus enables lively handling and high shearing forces.

Highlights

Additional Features

Weidemann Hoftrac 1260LP, Articulated pendulum joint

Maximum traction through articulated pendulum joint

  • The articulated pendulum joint enables all four wheels to maintain traction control even on uneven terrain. This increases the productivity of the machine and gives the operator optimum control.
  • The optimal ratio of articulation and swing angle ensures high traction control. This makes it easy to maneuver the machine. Even in confined spaces, there is no collision between the front and rear sections of the machine.
  • The front and rear carriages can swing independently of each other. The operator can thus react sensitively to every bump. This increases comfort and creates a safe feeling while driving.
Weidemann Hoftrac 1390, P-kinematics

Perfectly tuned P-kinematics

  • The P-kinematics are characterized by exact parallel guidance over the entire stroke range. Unintentional rolling out is not possible. This makes handling easy and safe for the operator.
Weidemann Hoftrac 1260LP, Tyres

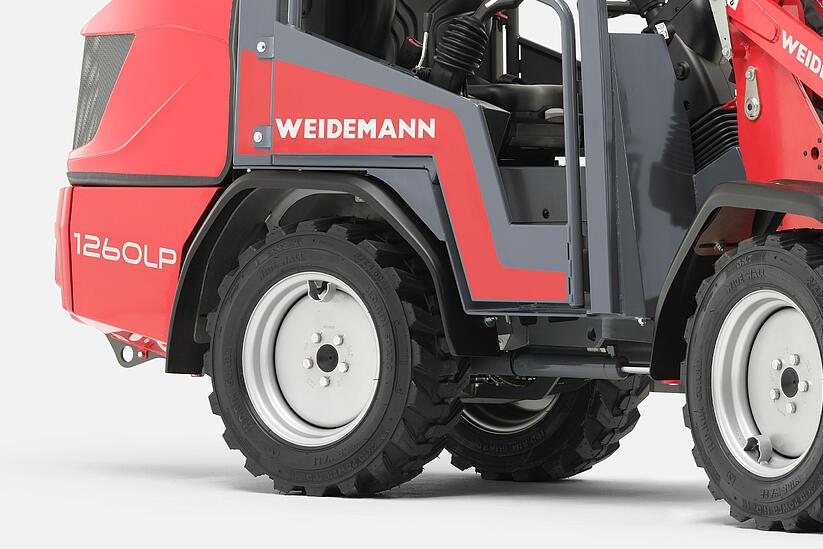

Optimum tires

  • The right tires for a machine play an important role in practical application. If the tires are matched to the ground and the application, the operator can work optimally with the machine.
  • Selecting the right tires ensures maximum traction as well as minimum wear and a pleasant running smoothness of the machine. These aspects also increase the service life of the tires and at the same time increase economic efficiency.
  • Different profiles are available depending on the model so as to achieve optimum performance on every ground: EM profile, AS profile, SureTrax profile, RP profile, MPT profile, Multiuse profile and Bibload profile. This ensures maximum flexibility in machine configuration ex works.
Weidemann Hoftrac 1140BL-1280, Stage V engine without AGN

Suitable engine without exhaust gas aftertreatment

  • The great advantage of the standard engine is that it complies with exhaust gas standard stage V, but does not require any exhaust gas aftertreatment. This motorization is well suited for light-duty applications, such as simple material handling.
  • The standard engine is a 3-cylinder engine, which impresses with a high torque with corresponding efficiency. The fact that this engine does not require exhaust aftertreatment automatically reduces maintenance costs.
  • Weidemann Hoftrac 1390, Powder coating

    High-quality powder coating

    • Compared to conventional wet painting, powder coating increases corrosion protection. It thus prolongs the value preservation of the machine to a great extent. In addition, the process is based on powder recovery. Therefore, it is particularly environmentally friendly.
    • The durable powder coating guarantees value retention and ensures an accordingly high resale value for the machine.
  • Weidemann Hoftrac 1260LP, Kinematics in general

    Perfectly tuned kinematics

    • At Weidemann, the kinematics are adapted to the size of the machine, based on application. This ensures optimum power ratios and maximum productivity for every machine.
    • The large hydraulic cylinders always provide enough reserves. The components of the loader unit are not operated at maximum.
    • The optimum matching and superior workmanship of the loading arm design and hydraulic cylinders increases the longevity of the machine.
Weidemann Hoftrac 1260LP, Two strong lift cylinders

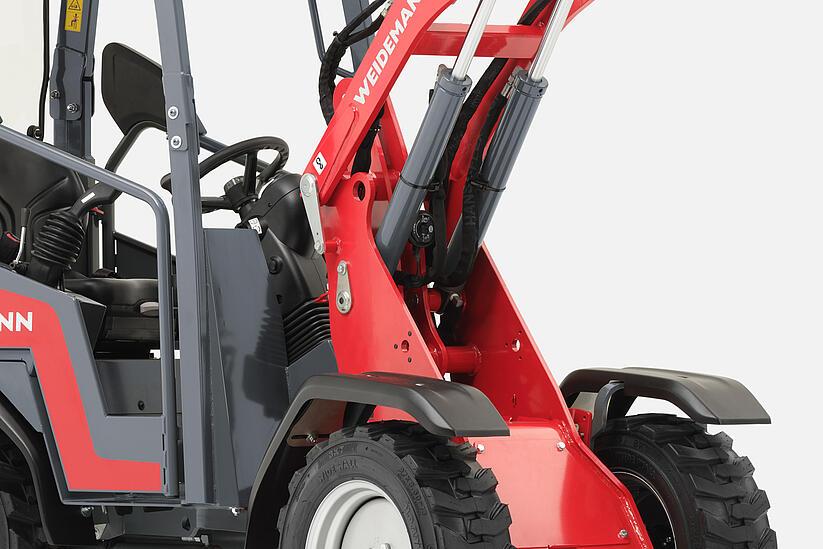

Two powerful lifting cylinders

  • Two powerful lifting cylinders guarantee that the load distribution is always optimally transferred to the loading arm. The entire loading system also gains in stability. A plus in terms of safety for the operator.
  • The stable loading arm together with two lifting cylinders prevents damage to the loader unit through torsion in the best possible way. This reduces service costs and increases the value preservation of the machine.
Weidemann Hoftrac 1260LP, Overhead guard

Safe overhead guard with restraint system

  • An overhead guard with restraint system is fitted as standard on the compact Hoftracs. The overhead guard and the restraint system for the operator comply with the safety provisions of the current European Machinery Directive according for ROPS (Roll Over Protective Structure) and FOPS (Falling Object Protective Structure). The overhead guard thus fulfills all legal requirements and offers maximum safety.
  • The overhead guard ensures good all-round visibility: The operator always has the work area and the immediate environment of the machine in view. This increases safety when working with the machine.
  • Depending on the model, a front and rear window are available to better protect the operator from the effects of the weather.
Weidemann Hoftracs, wheel loader, telescopic wheel loader 1140BL-9580T, Lightning

Illumination of the work area

  • The lighting can be adapted for different requirements: Halogen lighting, lighting according to StVZO, LED lighting and additional headlights on the driver's cab, the loader unit or the telescopic arm. This allows working with the machine adjusted to the individual, even in the dark.
  • A well-lit work area increases work safety and lets the operator work even longer with the machine, in a concentrated and safe manner.
Weidemann Hoftrac 1390, Multitool

A multi tool for many applications

  • The work tasks on a farm are varied, and so are the attachments from Weidemann. Every model becomes a multi-function control stalk machine with our comprehensive and well thought-out range of attachments.
  • The possible application of many different attachments increases the economic efficiency of a machine.
Weidemann Hoftrac 1260LP, Equipment

Variety of equipment

  • Weidemann machines have extensive and high-quality standard equipment. Moreover, depending on the application and model, e.g. engine, drive, driver's cab or hydraulics can be individually configured. It is always ensured that the machine meets the individual requirements and preferences of the customer.
Weidemann Hoftrac, Driver's platform 1140-1880

Selectable operator's cab

  • We offer a suitable selection of different driver's cabs for different applications.
  • Different driver's cabs are available depending on the machine: Fixed overhead guard, folding overhead guard eps (Easy Protection System) and various cab versions.
Weidemann Hoftrac 1160-1390, Transport car trailer

Transport on car trailer

  • Save time and transport costs: The machines can be easily transported on a car trailer thanks to compact dimensions and low weight.
  • The lashing points are optimally attached to the machine. This ensures that transport lock can be carried out in accordance with standards.
  • Depending on the machine type and equipment, transport can also include the attachment.
Weidemann Hoftrac, wheel loader, telescopic wheel loader1140BL-9580T, 4. Control circuit

Separate 4th Control circuit

  • The machine can be optionally equipped with a double-acting hydraulic auxiliary control circuit. The separate 4th control circuit is operated independently and individually and allows the extended application of hydraulic attachments with multiple connections and functions.
Weidemann Hoftrac, wheel loader, telescopic wheel loader 1140BL-9580T, Electrical connections front and rear

Front and/or rear electrical connections

  • The machine can be equipped with front and/or rear electrical connections. This allows electrically operated additional functions of attachments, such as a sweeping machine with water spraying mechanism, to be operated. It is also possible to switch additional functions of hydraulic attachments. The operation is comfortable via the joystick.
  • The electric functions (push/lock) can be individually assigned to the joystick controls if desired.
  • Electrical connections at the front and/or rear ensure that a wide range of attachments can be operated with the machine. This in turn increases the range of applications of the machine.
Weidemann Hoftrac, Radlader, Teleskopradlader 1190e, 1260LP, 1390-9580T, Pressureless return including leakage oil line

Pressureless return including leakage oil line

  • Certain attachments with their own hydraulic motor require an unpressurized return line. The hydraulic oil flows back into the hydraulic oil tank via the oil cooler and the oil filter in a large dimensioned separate line. The advantage here is that the attachment can feed the return oil cooled and without increased stagnation pressure back into the hydraulic oil tank. This protects components of the machine and the attachment.
  • The leakage oil line returns the leakage oil of the oil motor to the tank with max. 2 bar / 29.00 psi if required. This minimizes the casing pressure in the hydraulic motor of the attachment.
Weidemann Hoftrac, wheel loader, telescopic wheel loader 1140BL-9580T, Change attachments

Efficient change of attachments

  • The hydraulic rapid-change system allows attachments to be exchanged conveniently and quickly. The good view of the rapid-change plate makes changing attachments particularly easy.
  • Changing the attachments is extremely safe thanks to the 2-hand operation when de-coupling.
  • The machine is immediately ready for use again after changing the attachment. This increases productivity and improves economic efficiency.
Weidemann Hoftrac, wheel loader, telescopic wheel loader 1160, 1260LP-9580T, Brake-inch pedal

Inch brake pedal: Engine output where it is needed.

  • 1. No pressure on the inch-brake pedal: Full power for the traction drive. 2. Lightly pressed inch-brake-pedal: Speed is reduced, more power to the work hydraulics. 3. Strongly pressed inch-brake-pedal: The speed is reduced further, even more power to the work hydraulics. 4. Fully pressed inch-brake-pedal: The wheel loader is stationary, full power to the work hydraulics.
  • The advantages of the inch-brake-pedal: Less wear of the service brake as well as optimum power distribution of the engine output.
  • The inch-brake-pedal and hydrostatic traction drive enable very sensitive work to be done with the machine.
Weidemann wheel loader, Ballast weight

Ballast weight

  • The machine can be equipped with a ballast weight (floor plate on the rear carriage) and/or cast iron rear weight. This means that heavier loads can be transported thanks to the higher tipping load.
  • The increased tipping load expands the range of applications, as larger attachments can be operated and heavier loads can be moved with the same machine.
Weidemann Hoftrac 1260LP, Cabin

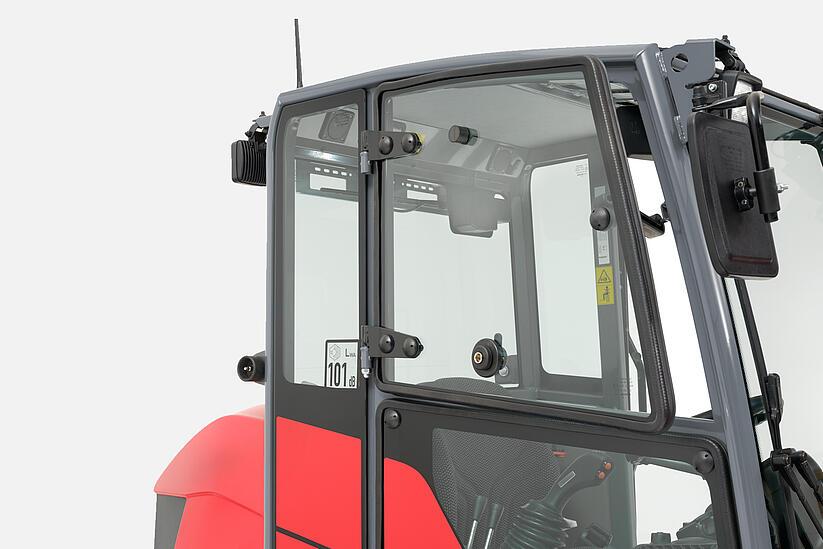

Comfortable Cab

  • The spacious and comfortable cab meets the safety requirements of the current European Machinery Directive according to ROPS (Roll Over Protective Structure) and FOPS (Falling Object Protective Structure) and offers plenty of headroom and freedom of movement.
  • The cab's full glazing and deeply recessed windows give the operator an excellent view of the attachment and the entire work area. This ensures safety, as the operator always has a clear view of the work environment.
  • The interior impresses with excellent ergonomics, a generous amount of available space and many individual adjustment options for the operator. The cab offers protection from all weather conditions and thus enables the operator to work in a focused and comfortable manner.
Weidemann Hoftrac 1260LP, Adjustable steering column

Adjustable steering column

  • The steering column can be individually adjusted to suit the operator's needs. This ensures that every operator can work with the machine in an ergonomic and focused manner.
Weidemann Hoftrac 1260LP, Ventilation as needed

Ventilation as required

  • Depending on the version, the cab has large, wide-opening doors or windows on both sides that can be opened erect. With the divided door, the upper window pane can be opened and locked in place. Gap ventilation is also possible. This ensures fresh air in the cab, even without air conditioning, and increases comfort for the operator in warm outside temperatures.
Weidemann Hoftrac 1260LP, Driver's seat without joystick Console with suspension

Comfortable and ergonomic operator's seat

  • The driver's seat is ergonomically shaped, well sprung and adjustable. The optional air sprung comfort seat offers even more pleasant conditions. Seat heating is available for cold temperatures. This increases the comfort for the operator. He can thus concentrate on working with the machine for longer periods.
  • Depending on the model, different seats are available to match the size of the machine. The various seat adjustment options allow individual settings for the operator, providing optimum comfort.
Weidemann Hoftrac 1190e, 1260LP, 1390, Flat-Face-Hydraulic coupling

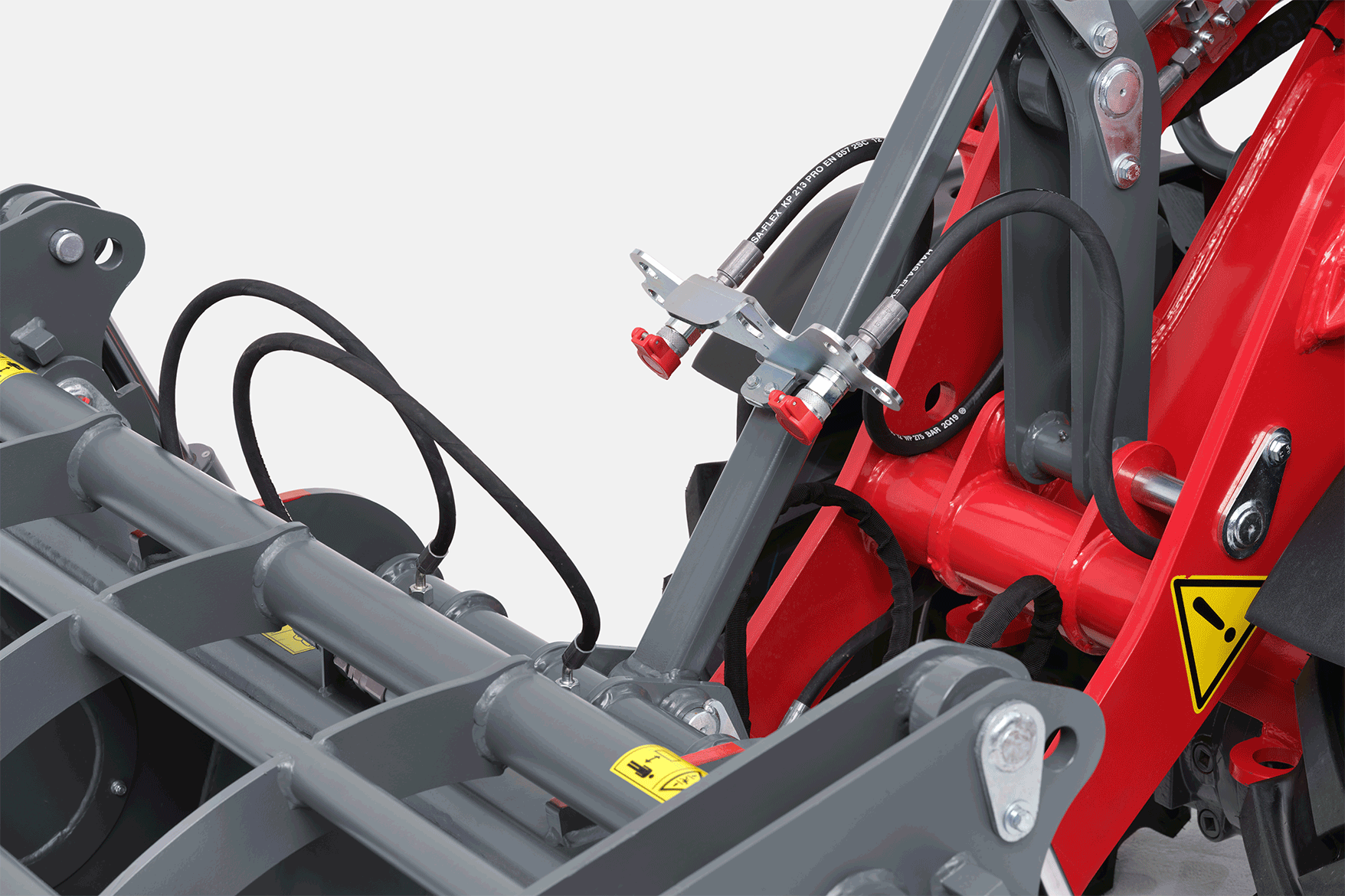

Flat-Face Hydraulic Couplings

  • Easy change of attachments: The flat-face hydraulic couplings can be cleaned easily, ensuring less soiling in the entire hydraulic system. When the hydro connections are coupled, hardly any leaking occurs, keeping hands, the machine, the attachment and the ground clean.
  • With the flat-face hydraulic couplings, hydraulically operated attachments can be coupled even under pressure, which saves time. All coupling types are mounted on the same bulkhead and are thus easily accessible.
Weidemann Hoftrac 1140BL-1390, Easy Coupler System

ecs (Easy Coupler System)

  • Thanks to the Weidemann ecs (Easy Coupler System), hydraulically driven attachments can be changed completely from the driver's seat, in an easy and safe manner. The operator does not have to get off the machine to manually connect the hydraulic couplings.
  • This increases safety for the operator, protects the environment and also saves a considerable amount of time.
  • Weidemann Hoftrac, Service accessibility

    Intelligently Designed Service Access

    • Due to the design of the Weidemann LP models, the operator's platform or cab cannot be tilted laterally. To ensure the best possible access to the engine, hydraulic system and electrics on these machine types, various easily accessible inspection and maintenance hatches are provided.
    • In addition, the operator's seat can be removed simply and easily. The engine hood can also be opened fully to provide optimum access.
  • Weidemann Hoftrac, Split hydraulic hoses

    Maintenance-friendly hydraulic hosing

    • Short hydro connections are generally installed on Weidemann machines. This means that the hoses are split at several places. If a hydro connection needs to be replaced; only the affected part is replaced. This means that there is no need to replace the entire hose connection in the hydraulic circuit. This speeds up repair times enormously and is also cost-efficient.
  • Weidemann Hoftrac 1260LP, Exhaust emission standard engine selection

    Current emission standard and suitable engine

    • When implementing the current emissions directive for the reduction of exhaust gases and pollutants, it is important not to compromise in terms of performance, service life or economic efficiency of the machines, despite strict regulations. To implement this directive, Weidemann uses the latest engine technologies. These are equipped with various exhaust gas after-treatment systems.
    • Each machine can be equipped with the motorization appropriate for its size class. This prevents under- or over-motorization, which in turn ensures fuel-efficient and economical operation.
